Brass Gate Valve
Below are the Brass Gate Valve’s dimensions, product diagram and product information. Brass Gate Valves are supplied by Steel Pipes and Fittings in Port Elizabeth
Brass Gate Valve Dimensions
| BRASS GATE VALVESIZE | A | H | L | B | G | ø |
| 1/4″ | 54 | 73 | 36 | 10 | 1/4″ | 11.6 |
| 3/8″ | 54 | 73 | 36 | 10 | 3/8″ | 12.5 |
| 1/2″ | 54 | 74 | 40 | 11 | 1/2″ | 13 |
| 3/4″ | 54 | 80 | 50 | 13.5 | 3/4″ | 19 |
| 1″ | 60 | 87.5 | 53 | 14 | 1″ | 20 |
| 1-1/4″ | 71 | 111 | 56 | 14.5 | 1-1/4″ | 31 |
| 1-1/2″ | 71 | 124 | 61 | 16 | 1-1/2″ | 38 |
| 2″ | 78.5 | 138 | 66 | 17 | 2″ | 45 |
| 2-1/2″ | 108 | 178 | 80 | 23 | 2-1/2″ | 60 |
| 3″ | 108 | 198 | 92.5 | 24 | 3″ | 70 |
| 4″ | 126 | 230 | 102 | 25 | 4″ | 86 |

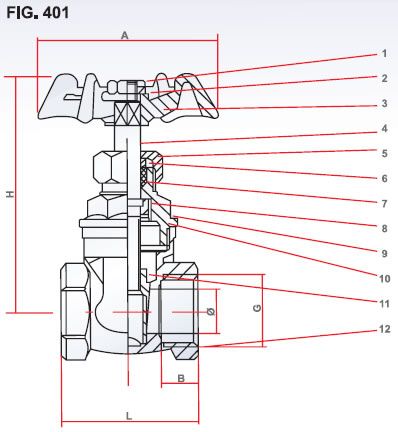

Brass Gate Valve diagram
Brass Gate Valve diagram description and material composition
| 1 | HEX. NUT | STEEL |
| 2 | MARK | AL |
| 3 | HANDLE | STEEL |
| 4 | STEM | BRASS |
| 5 | NUT | BRASS |
| 6 | BRASS RING | BRASS |
| 7 | PACKING | PTFE |
| 8 | LOCKING OUT | BRASS |
| 9 | BONNET | BRASS |
| 10 | WASHER | PTFE |
| 11 | SPINDLE | BRASS |
| 12 | BODY | BRASS |
Should you have any questions regarding Brass Gate Valves, please submit an enquiry to Steel Pipes & Fittings.
